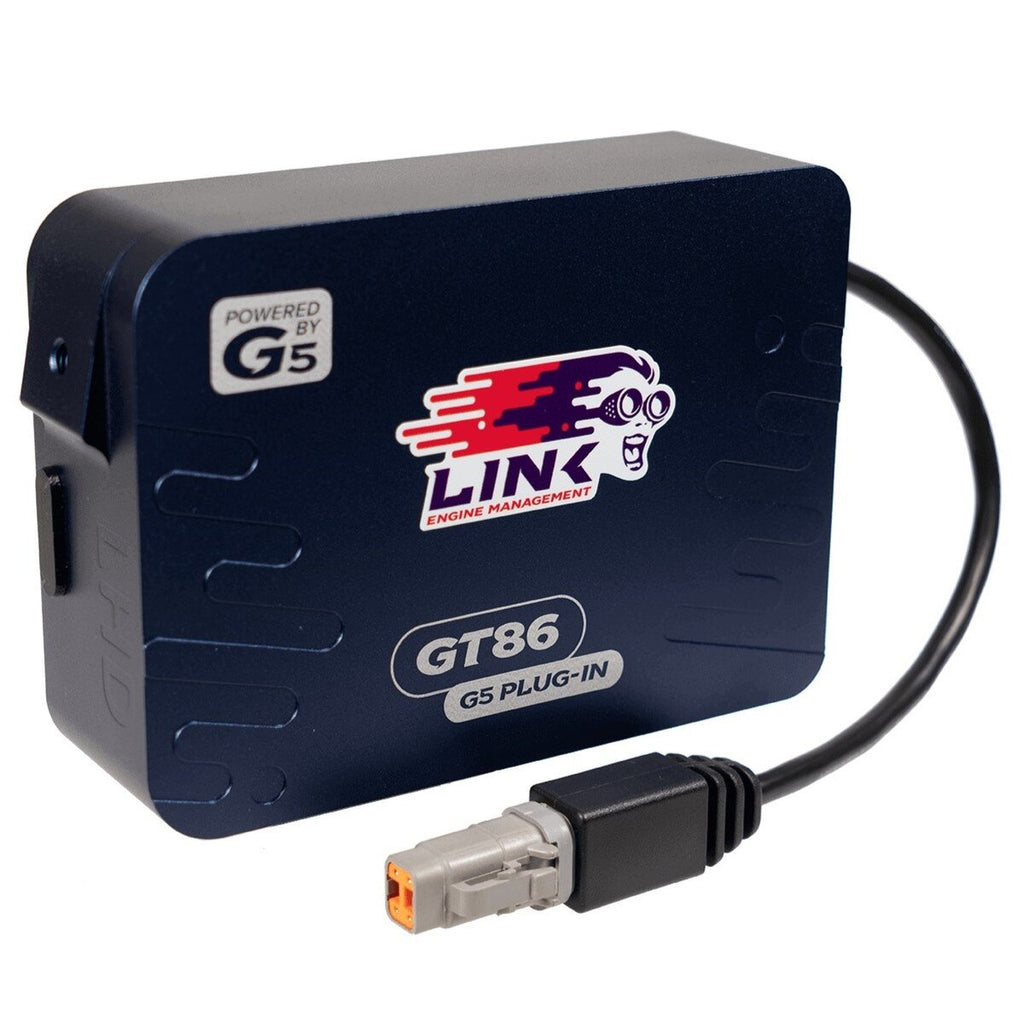

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro.
Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions.
Models Supported:
- Toyota 86, ZN6, 2012 – 2021
- Toyota GT86, ZN6, 2012-2021
- Subaru BRZ, ZC6, 2012-2020
- Scion FR-S 2013-2016
For more technical information please see the Features and Specifications tabs.
In the box:
- G5-GT86 Plugin ECU
- USB-C Connection Cable
- Locking USB-C extension cable for easy tuning access
- 2 x M6 screws for ECU mounting in OEM bracket
- DTM4 CAN Connection Cable (Pre-Installed in Enclosure)
- Link stickers
Notes:
Due to the very tight nature of the factory ECU location, the LHD and RHD mounting methods differ. This is for left-hand drive LHD vehicles.
2017+ Models have some differences to earlier cars and will not run with the sample maps supplied in PCLink and the standard plug-in ecu hardware.
- 2017+ Engines have a Hall Effect Crank Sensor instead of Reluctor and so require the Trigger 1 Type changed from 'Reluctor' to 'Optical/Hall' and the Trigger 1 Pull-up set to ON.
- 2017+ Engines have a different DI Fuel Pressure sensor than earlier models, this sensor has 4 pins instead of 3 and requires an 8.2kohm pullup resistor to be wired between C7 (An Volt 4) and 5v, the DI Fuel Pressure Source changed from An Volt 3 to An Volt 4 and the pressure calibration changed to 0kPa at 4.06V and 30000kPa at 0.46V.
EPA WARNING: This is a RACE ONLY product manufactured and sold for installation on vehicles to be used solely for competition purposes, which, once installed, may never be used, or registered or licensed for use upon a public road or highway. If you install this part on your vehicle and use that vehicle on a public road or highway, you will be considered in violation of the Clean Air Act and personally subject to a civil penalty of $4,454. By Purchasing this item you agree to use this only a RACE ONLY vehicle, if found in violation you will be held criminally and financially for any expense incurred to Mitch's Auto Parts, LLC.
